Safety Impact Series 18 Wall Pad - Nail Margin Installation

The Connor Sports® Safety Impact Series 18 Wall Pad is an indoor fixed wall padding system engineered for durability, safety, and a clean finished appearance. Designed for direct wall attachment, each panel is constructed with a 7/16" exterior wood backing and 2" high-compression impact-rated polyurethane foam laminated to the face using a two-part adhesion process. The panel is wrapped on the front and sides and securely stapled on the back with 18.5 oz. coated smooth matte Class A PVC vinyl for long-term performance in demanding interiors.

Safety Impact Series 18 meets ASTM 2440 impact standards, which quantify performance in terms of g-max and Head Injury Criterion (HIC) scores. The vinyl facing is treated with BACshield for anti-mildew, anti-fungus, antimicrobial, antibacterial, and UV-resistant performance, and it passes NFPA-701, CSFM-19, and ASTM E-84 Class A fire-retardant requirements. The product has also been tested to CDPH 01350 v1.2 VOC emissions evaluation requirements and qualifies toward LEED v4.1 EQ low-emitting materials credits.

Standard manufacturing includes typical 24" panel widths with project-specific heights, and all corners and columns are prefabricated to meet field conditions.

Key Features

• Indoor fixed wall padding panel for direct wall attachment
• 2" high-compression impact-rated polyurethane foam
• 7/16" exterior wood backing for durable panel construction
• 18.5 oz. coated smooth matte Class A PVC vinyl finish
• Wrapped front and sides with secure rear stapling
• Meets ASTM 2440 impact standards for g-max and HIC
• Vinyl passes NFPA-701, CSFM-19, and ASTM E-84 Class A requirements
• Tested to CDPH 01350 v1.2 VOC emissions standards
• Supports LEED v4.1 EQ low-emitting materials credits
• Standard 24" panel widths with custom heights available
• Prefabricated corners and columns for field-fit applications

Specifications

Application: Indoor fixed wall padding panel for direct wall attachment
Foam Core: 2" high-compression impact-rated polyurethane foam
Backing: 7/16" exterior backing
Facing: 18.5 oz. coated smooth matte Class A PVC vinyl
Impact Standard: ASTM 2440
Fire-Related Testing: NFPA-701, CSFM-19, ASTM E-84 Class A
VOC Testing: CDPH 01350 v1.2
Sustainability: Qualifies toward LEED v4.1 EQ low-emitting materials credit
Standard Panel Width: 24"
Height: As specified by customer
Custom Options: Prefabricated corners and columns available

Installation Option

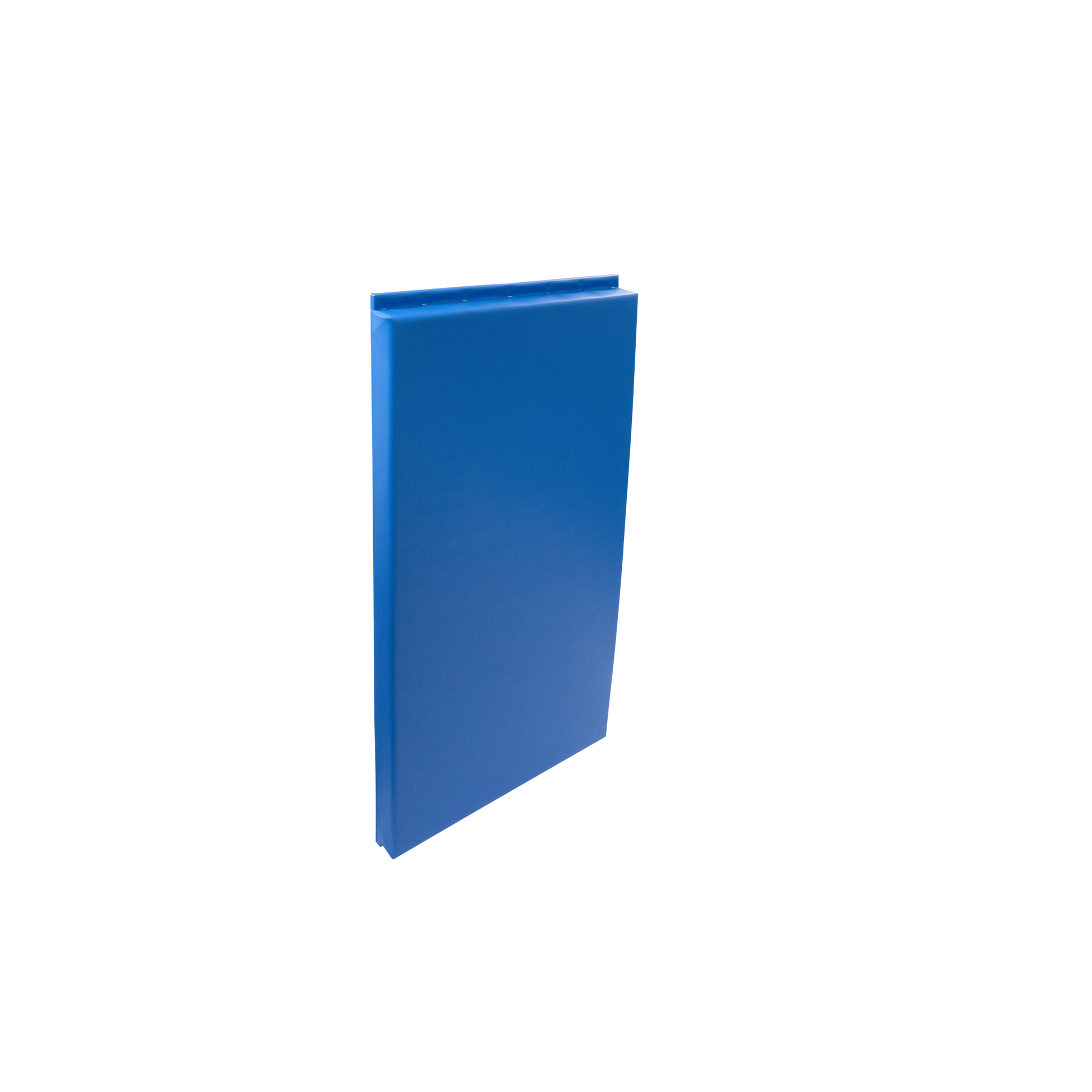

Nail Margin Installation
A 1" nail margin at the top and bottom along the width edge of the panel is attached directly to the wall or to furring using hardware appropriate for the wall type. The current standard is 4" above finished floor to the bottom of foam.

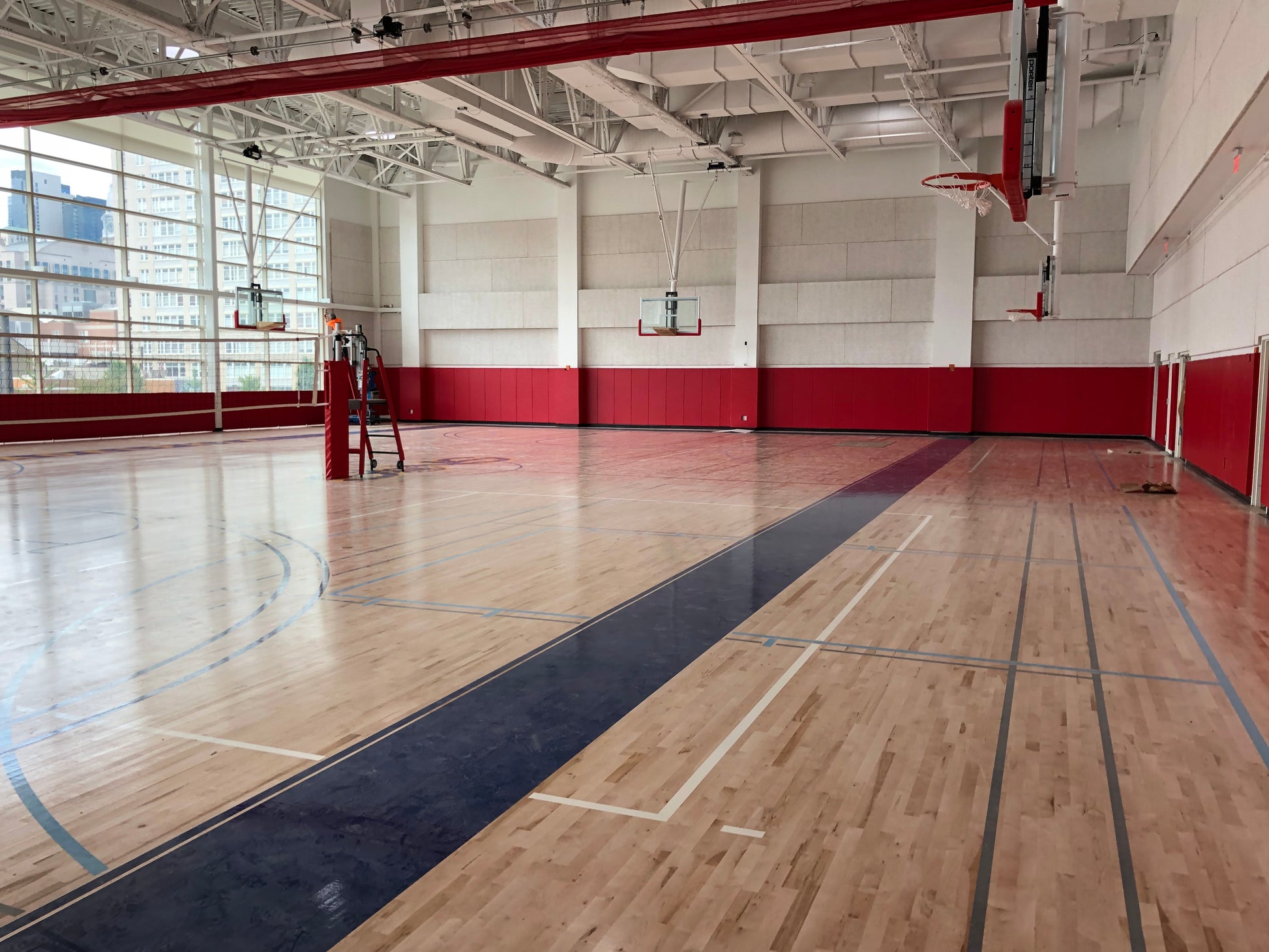

Ideal For

• Gymnasiums
• Fieldhouses
• Training facilities
• Recreation centers
• Schools and universities
• Multi-purpose athletic spaces
