Safety Impact Series 18 Wall Pad - Z Clip Installation

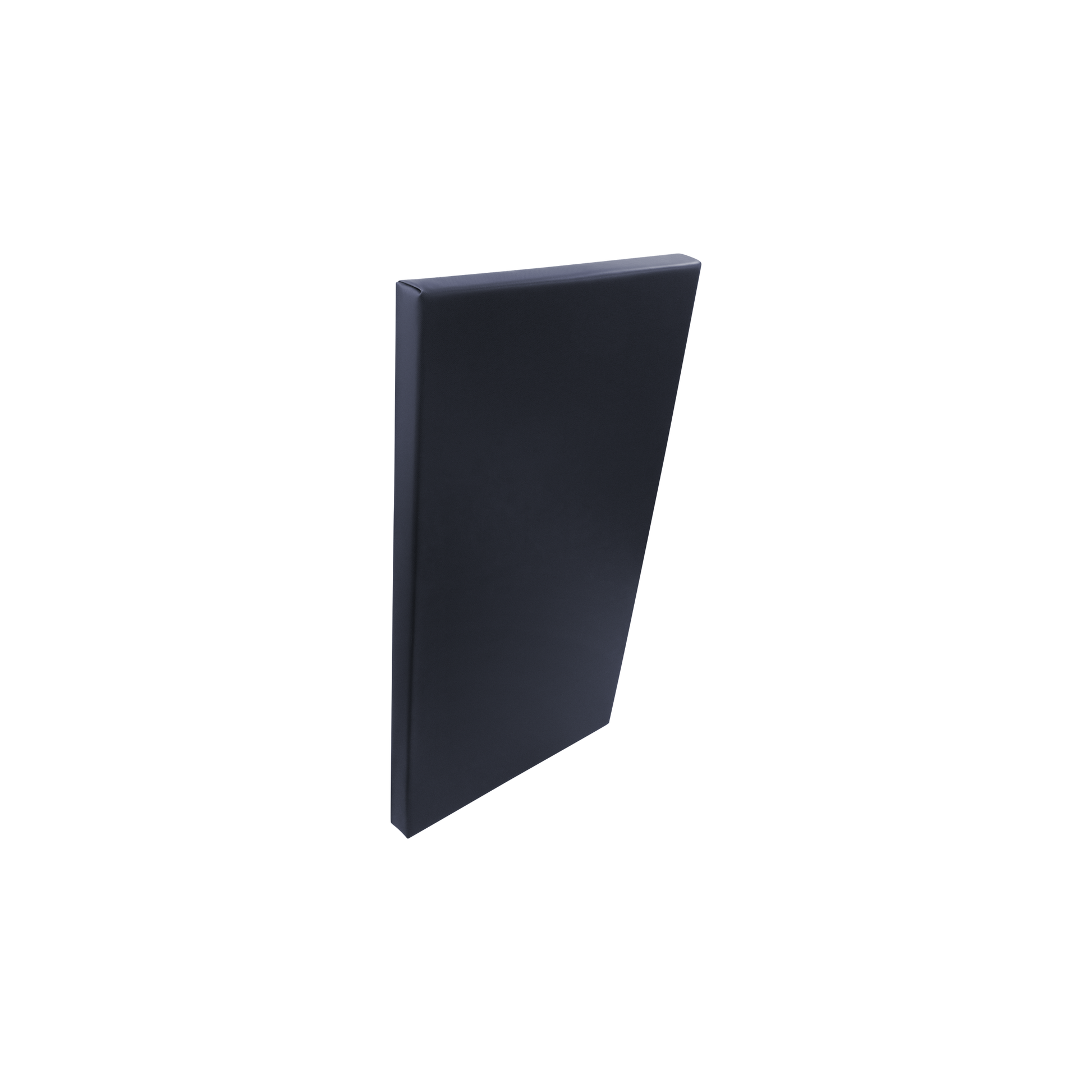

The Connor Sports® Safety Impact Series 18 Wall Pad is an indoor fixed wall padding system engineered for durability, safety, and a clean finished appearance. Designed for direct wall attachment, each panel is constructed with a 7/16" exterior wood backing and 2" high-compression impact-rated polyurethane foam laminated to the face using a two-part adhesion process. The panel is wrapped on the front and sides and securely stapled on the back with 18.5 oz. coated smooth matte Class A PVC vinyl for long-term performance in demanding interiors.

Safety Impact Series 18 meets ASTM 2440 impact standards, which quantify performance in terms of g-max and Head Injury Criterion (HIC) scores. The vinyl facing is treated with BACshield for anti-mildew, anti-fungus, antimicrobial, antibacterial, and UV-resistant performance, and it passes NFPA-701, CSFM-19, and ASTM E-84 Class A fire-retardant requirements. The product has also been tested to CDPH 01350 v1.2 VOC emissions evaluation requirements and qualifies toward LEED v4.1 EQ low-emitting materials credits.

Standard manufacturing includes typical 24" panel widths with project-specific heights, and all corners and columns are prefabricated to meet field conditions.

Key Features

• Indoor fixed wall padding panel for direct wall attachment
• 2" high-compression impact-rated polyurethane foam
• 7/16" exterior wood backing for durable panel construction
• 18.5 oz. coated smooth matte Class A PVC vinyl finish
• Wrapped front and sides with secure rear stapling
• Meets ASTM 2440 impact standards for g-max and HIC
• Vinyl passes NFPA-701, CSFM-19, and ASTM E-84 Class A requirements
• Tested to CDPH 01350 v1.2 VOC emissions standards
• Supports LEED v4.1 EQ low-emitting materials credits
• Standard 24" panel widths with custom heights available
• Prefabricated corners and columns for field-fit applications

Specifications

Application: Indoor fixed wall padding panel for direct wall attachment
Foam Core: 2" high-compression impact-rated polyurethane foam
Backing: 7/16" exterior backing
Facing: 18.5 oz. coated smooth matte Class A PVC vinyl
Impact Standard: ASTM 2440
Fire-Related Testing: NFPA-701, CSFM-19, ASTM E-84 Class A
VOC Testing: CDPH 01350 v1.2
Sustainability: Qualifies toward LEED v4.1 EQ low-emitting materials credit
Standard Panel Width: 24"
Height: As specified by customer
Custom Options: Prefabricated corners and columns available

Installation Option

Z-Clip Installation

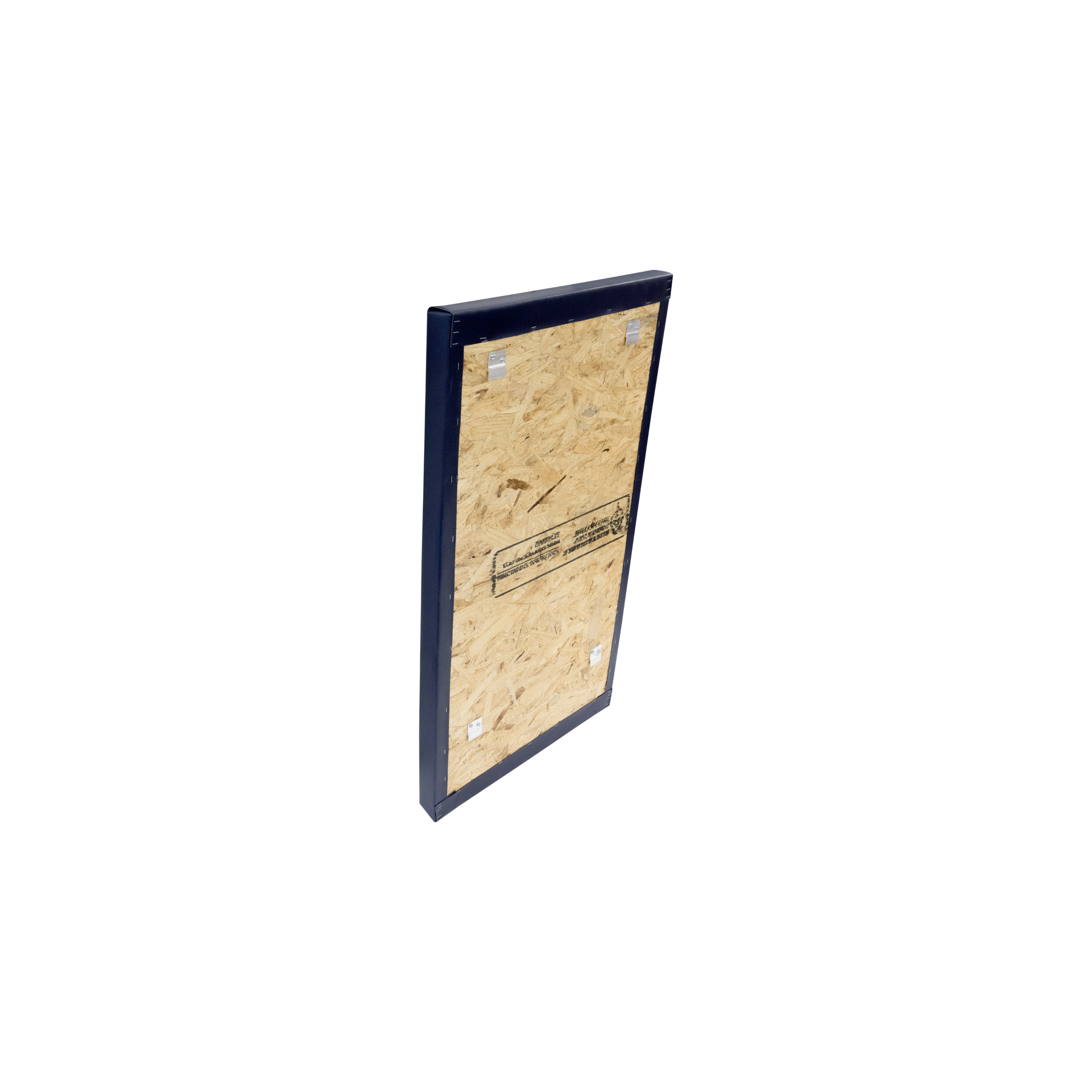

Panels are positioned above the wall-mounted Z-Clip and lowered until the clips secure the panel. No nailing margin is provided on these panels. Panel-side Z-Clip mounting hardware is supplied; wall-side Z-Clip and hardboard strip mounting hardware are not supplied.

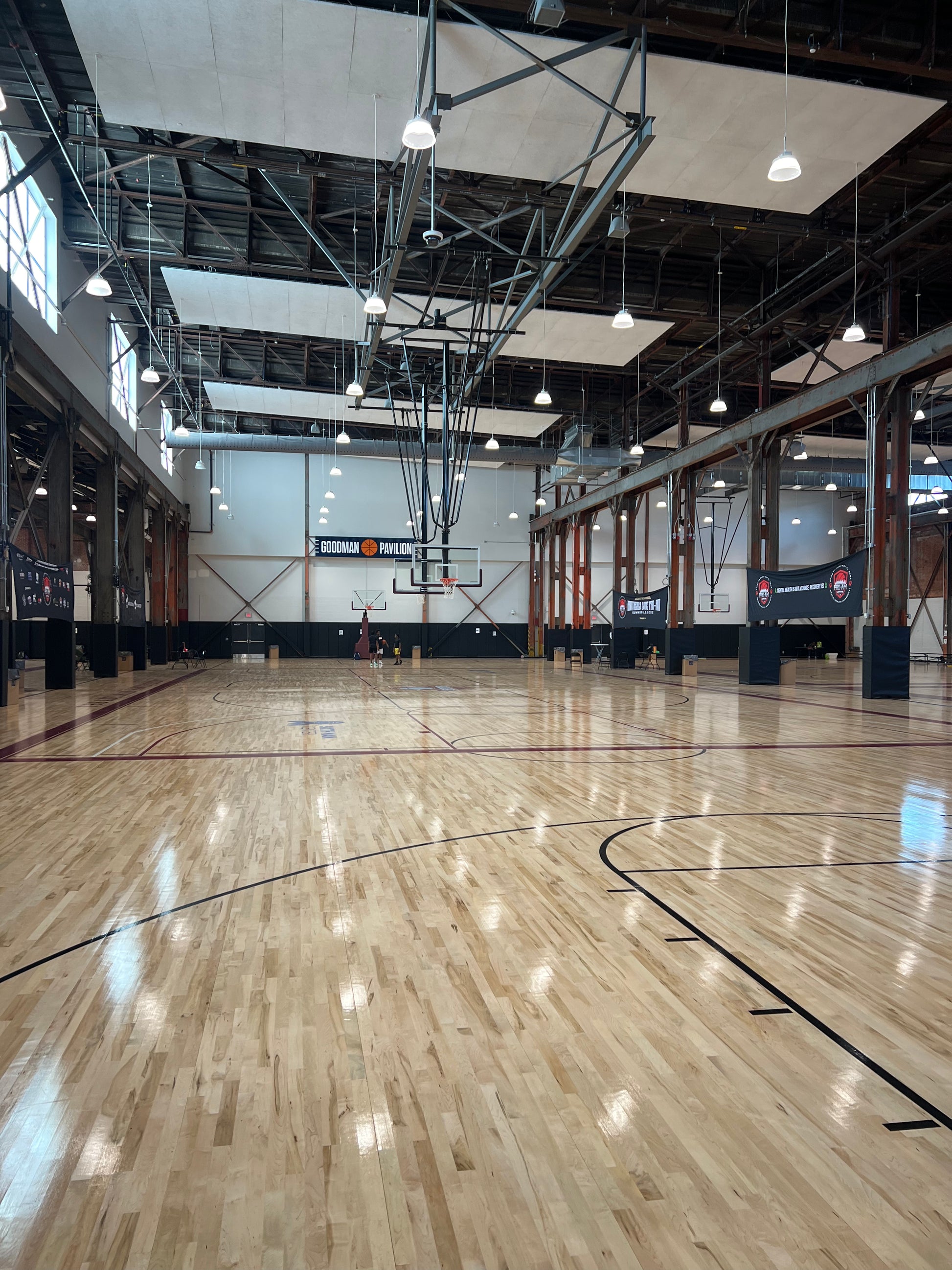

Ideal For

• Gymnasiums
• Fieldhouses
• Training facilities
• Recreation centers
• Schools and universities
• Multi-purpose athletic spaces
